Disk Manager

Responsibilities:

  1. represents the database in files on disk
  2. manages its memory and move data back-and-forth from disk

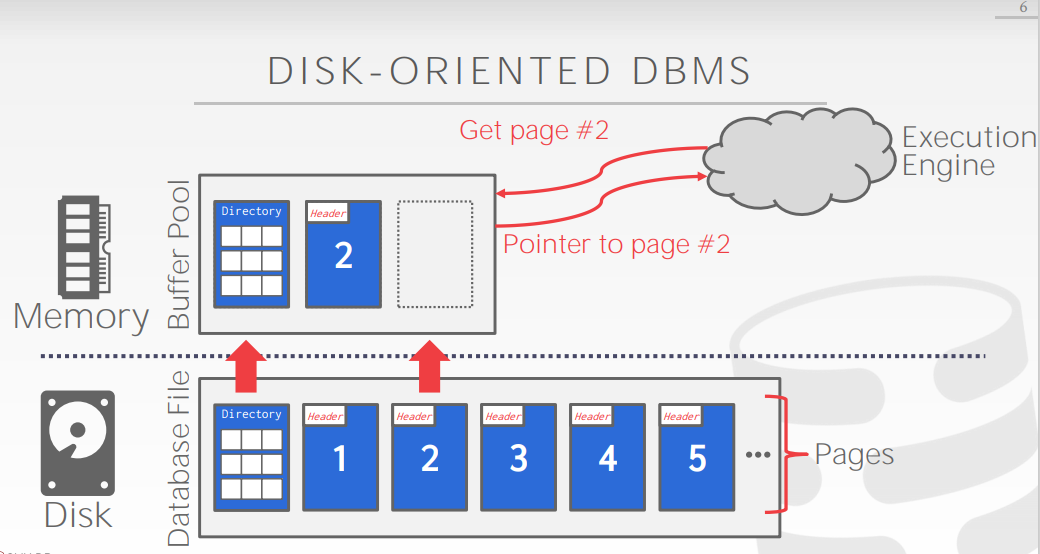

image-20210420164301183

  1. How the DBMS represents the database in files on disk

    • File storage

      • n-array storage model (row store, apply for OLTP)

        • advantage:

          fast inserts, updates, and deletes

          good for queries that need the entire tuple

        • disadvantage:

          Not good for scanning large portions of the table and/or a subset of the attributes

      • decomposition storage model (column store, apply for OLAP)

        Tuple identification

        1. Fixed-length offset

          Each value is the same length for an attribute

        2. Embedded tuple ids

          Each value is stored with its tuple id in a column

        • advantage:

          reduces the amount wasted I/O because the DBMS only reads the data that it needs

          better query processing and data compression

        • disadvantage:

          slow for point queries, inserts, updates, and deletes because of tuple splitting/stitching

    • Page layout

      • Slotted pages

      • Log-structed file organization

        Log-structed compaction (level compaction or universe compaction)

    • Tuple layout

      • Data representation

        Type Representation
        INTEGER/BIGINT/SMALLINT/TINYINT C/C++ Representation
        FLOAT/REAL vs. NUMERIC/DECIMAL IEEE-754 Standard / Fixed-point Decimals
        VARCHAR/VARBINARY/TEXT/BLOB Header with length, followed by data bytes
        TIME/DATE/TIMESTAMP 32/64-bit integer of (micro)seconds since Unix epoch

      • External value storage -> BLOB

        The DBMS cannot manipulate the contents of an external file because of without durability & transaction protections

  2. How the DBMS manages its memory and move data back-and-forth from disk

    • Spatial Control: (where)

      Goal: keep pages that are used together often as physically close together as possible on disk

    • Temporal Control: (when)

      Goal: minimize the number of stalls from having to read data from disk.

Buffer Pool Manager

Memory region organized as an array of fixed-size pages.

An array entry is called a frame.

The page table keeps track of pages that are currently in memory and also maintains additional meta-data per page.

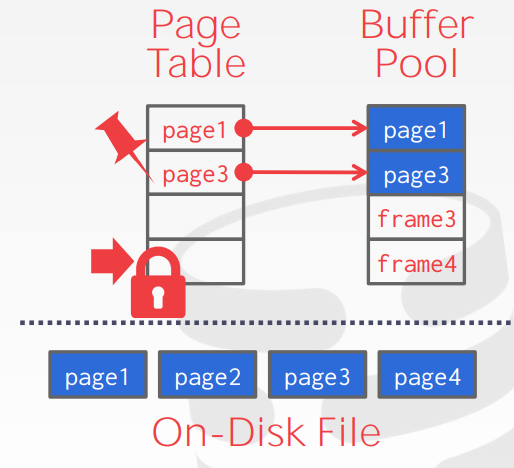

image-20210420155458047

  1. Allocation policies

    • Global policies

      Make decisions for all active txns.

    • Local policies

      Allocate frames to a specific txn without considering the behavior of concurrent txns. Still need to support sharing pages.

  2. Optimization

    • multiple buffer pools

      Helps reduce latch contention and improve locality. Use embed object id or hashing for mapping.

    • pre-fetching

    • scan sharing

    • buffer pool bypass

      The sequential scan operator will not store fetched pages in the buffer pool to avoid overhead.

  3. Buffer replacement polices

    • Least-Recently-Used
    • Clock

    LRU and CLOCK replacement policies are susceptible to sequential flooding.

    sequential flooding

    A query performs a sequential scan that reads every page and this pollutes the buffer pool with pages that are read once and then never again.

    • LRU-K
    • Localization
    • Priority hints

Access Methods

Responsibilities:

  1. Data Organization (in memory / pages)
  2. Concurrency

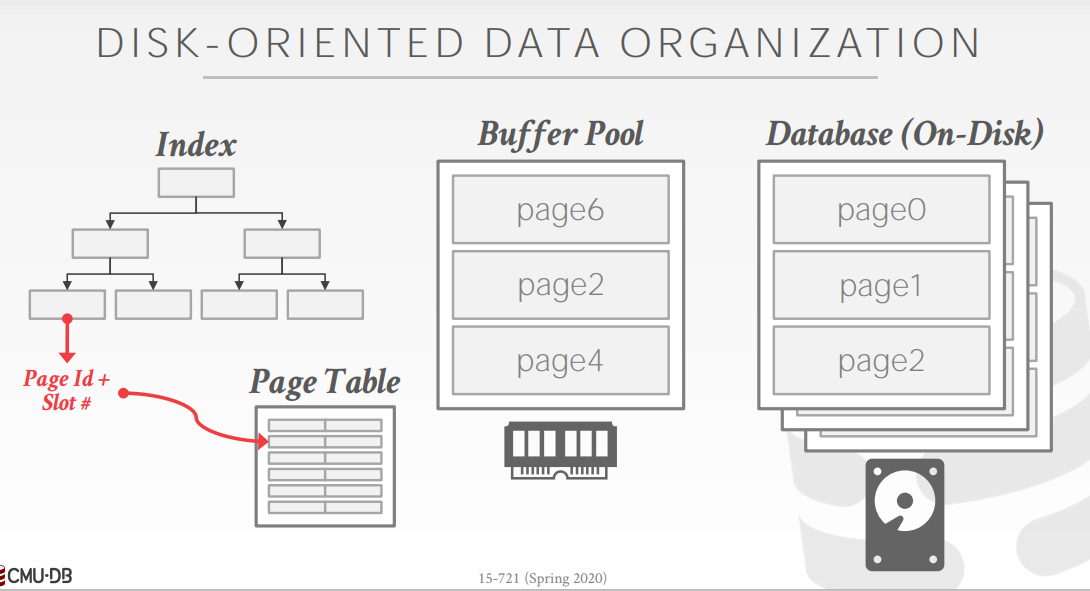

image-20210505021551150

  • Data structures designed for Disk-oriented database

    1. hash table
      • hash function (how to map)
        • CRC-64
        • Google CityHash
        • …
      • hashing schema (how to handle key collisions)
        • static hashing schema
          • Linear probe hashing
          • Robin hood hashing
          • Cuckoo hashing
      • dynamic hashing schema
        • chained hashing
        • extendible hashing
        • linear hashing
    2. B+Tree

    • leaf node values

      • Record Ids -> A pointer to the location of the tuple that the index entry corresponds to.
      • Tuple Data -> The actual contents of the tuple is stored in the leaf node.

    • duplicate keys

      • Append record id
      • Overflow leaf nodes

    • node size

      The slower the storage device, the larger the optimal node size for a B+Tree.

    • merge threshold

      Delaying a merge operation may reduce the amount of reorganization.

    • variable length keys

      • pointers

      • variable length nodes (requires careful memory management)

      • padding

      • key map / indirection

        Embed an array of pointers that map to the key + value list within the node.

    • intra-node search

      • linear

      • binary

      • interpolation

        Approximate location of desired key based on known distribution of key.

    • optimization

      • prefix compression

        Instead of storing the entire key each time, extract common prefix and store only unique suffix for each key.

      • deduplication

        The leaf node can store the key once and then a maintain a list of record ids with that key.

      • suffix truncation

        Store a minimum prefix that is needed to correctly route probes into the index.

      • bulk insert

        to build a new B+Tree for an existing table, first sort the keys and then build the index from the bottom up.

      • pointer swizzling

        If a page is pinned in the buffer pool, then we can store raw pointers instead of page ids.

    1. Trie tree

      • Trie key span

        The span of a trie level is the number of bits that each partial key / digit represents.

    2. Radix tree

    3. Trie variant

      • Judy Arrays (HP)
        • Linear Node
        • Bitmap Node
        • Uncompressed Node
      • ART Index (HyPer)
      • Masstree (Silo)

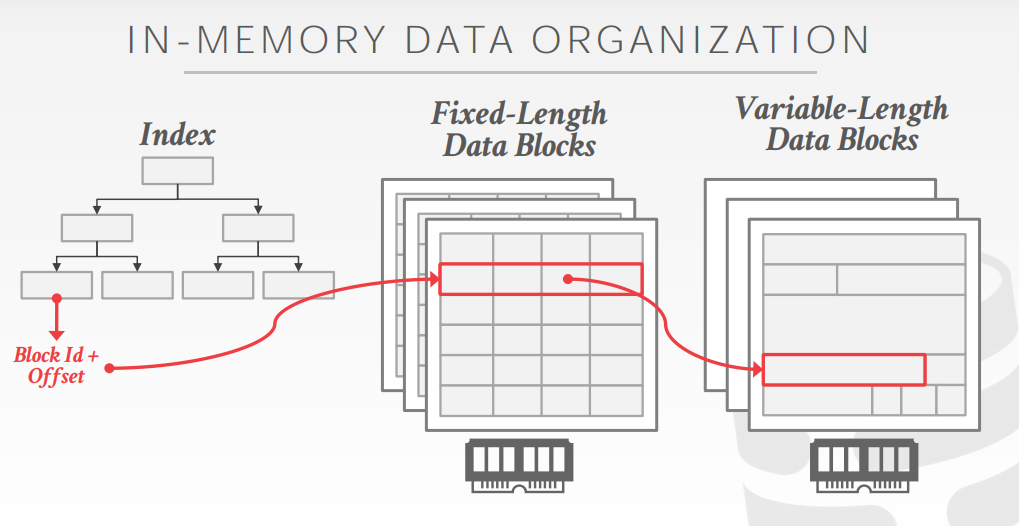

image-20210505021640552

  • Data structure designed for in-memory databases

    1. T Trees

      Based on AVL Trees. Instead of storing keys in nodes, store pointers to their original values.

      Advantages:

      • Uses less memory because it does not store keys inside of each node.
      • The DBMS evaluates all predicates on a table at the same time when accessing a tuple (i.e., not just the predicates on indexed attributes).

      Disadvantages:

      • Difficult to rebalance.
      • Difficult to implement safe concurrent access.
      • Must chase pointers when scanning range or performing binary search inside of a node. (greatly hurts cache locality)

    2. BW Tree

      Latch-free B+Tree index built for the Microsoft Hekaton project.

      • garbage collection
      • Optimization (CMU open BW Tree)
        • Pre-Allocated Delta Records
        • Mapping Table Expansion

  • Index types

  • Index concurrency control

    A protocol’s correctness criteria can vary:

    1. Logical Correctness: can a thread see the data that it is supposed to see
    2. Physical Correctness: is the internal representation of the object found

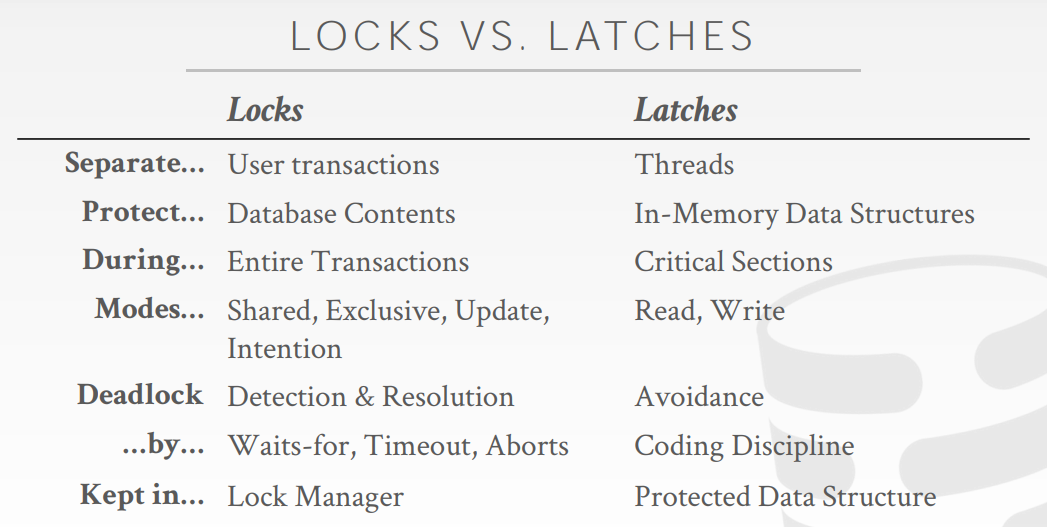

image-20210421013209998

  • Latch implement

    • Blocking OS mutex
    • Test-and-Set Spin Latch (TAS)
    • Reader-Writer Locks
    • Adaptive Spinlock
    • Queue-based Spinlock (MCS)

  • Hash table latching

    • Page latches
    • Slot latches

  • B+ tree latching

    • latch crabbing / coupling

      Basic Idea:

      1. Get latch for parent
      2. Get latch for child
      3. Release latch for parent if “safe”. (A safe node is one that will not split or merge when updated.)

    • better latching algorithm

      Instead of assuming that there will be a split/merge, optimistically traverse the tree using read latches. If you guess wrong, repeat traversal with the pessimistic algorithm.

    • B link-Tree Optimization

      When a leaf node overflows, delay updating its parent node.

    • versioned latch coupling

      Optimistic crabbing scheme where writers are not blocked on readers.

Operator Execution

  1. Operator Algorithms

    • Sort

      • External merge sort

        Pass #0: Use B buffer pages and Produce ⌈N / B⌉ sorted runs of size B

        Pass #1,2,3…: Merge B-1 runs (i.e., K-way merge)

      • B+ tree sorting (clustered / unclustered)

      • Optimization

        • Chunk I/O into large blocks to amortize costs.
        • Double-buffering to overlap CPU and I/O.

    • Aggregations

      We don’t always need the data to be ordered, so hashing is a better alternative (only need to remove duplicate, no need for sorting and cheaper computation).

      • Sorting

      • Hashing

        • External hashing aggregation

          Phase #1: partition

          Divide tuples into buckets based on hash key and write them out to disk when they get full.

          Phase #2: reHash

          Build in-memory hash table for each partition and compute the aggregation

    • Join

      Join vs Cross-Product

      Join is the most common operation and thus must be carefully optimized.

      Cross-Product followed by a selection is inefficient because the cross-product is large.

      • Cost Analysis Criteria (determine whether one join algorithm is better than another)

        Metric: # of IOs to compute join

      • Join Algorithm

        • Nested loop join
        • Sort-Merge join
        • Hash join

      For table R owns M pages m tuples and table S owns N pages n tuples.

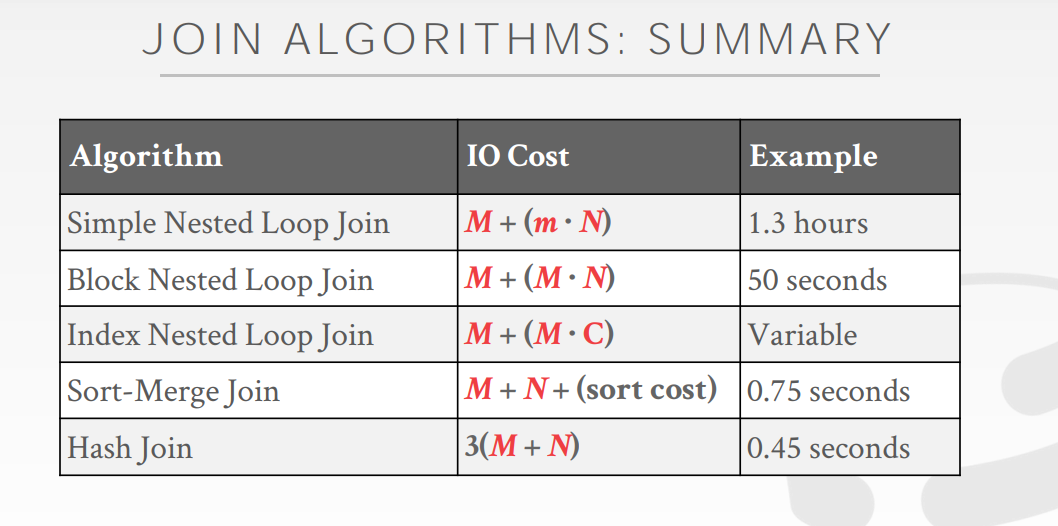

      image-20210425225047185

  2. Query Processing Models

    • Iterator model (Volcano / Pipeline)

      The operator implements a loop that calls Next on its children to retrieve their tuples and then process them.

    • Materialization model (better for OLTP)

      Each operator processes its input all at once and then emits its output all at once.

    • Vectorized / Batch model (better for OLAP)

      Like the iterator model, but each operator emits a batch of tuples instead of a single tuple.

    Access method

    • Sequential Scan

      Optimizations

      • Prefetching

      • Buffer Pool Bypass

      • Parallelization

      • Heap Clustering

      • Zone Maps

        Pre-computed aggregates for the attribute values in a page.

      • Late Materialization

        Delay stitching together tuples until the upper parts of the query plan.

    • Index Scan

      Picks an index to find the tuples that the query needs.

    • Multi-Index / “Bitmap” Scan

      If there are multiple indexes that the DBMS can use for a query

      • Compute sets of record ids using each matching index
      • Combine these sets based on the query’s predicates (union / intersect)
      • Retrieve the records and apply any remaining predicates.

    Halloween problem can occur on clustered tables or index scans.

    Anomaly where an update operation changes the physical location of a tuple, which causes a scan operator to visit the tuple multiple times.

    The DBMS represents a WHERE clause as an expression tree (flexible but slow) for expression evaluation.

  3. Runtime Architectures

    • Process per DBMS Worker

      Relies on OS scheduler and shared memory.

      A process crash doesn’t take down entire system.

    • Process pool

      Relies on OS scheduler and shared memory.

      Bad for CPU cache locality.

    • Thread per DBMS Worker

      DBMS manages its own scheduling, may or may not use a dispatcher thread.

      Thread crash (may) kill the entire system.

  4. Parallel Query Execution

    • Execution Parallelism

      • Inter-Query (Different queries are executed concurrently)

        If multiple queries are updating the database at the same time, concurrency control is involved

      • Intra-Query (Execute the operations of a single query in parallel)

        • Intra-Operator (Horizontal)

          Decompose operators into independent fragments that perform the same function on different subsets of data.

        • Inter-Operator (Vertical) (Pipelined parallelism)

          Operations are overlapped in order to pipeline data from one stage to the next without materialization.

        • Bushy

          Extension of inter-operator parallelism. Exchange nodes inserted over essentially independent query plan fragments allow those fragments to execute independently of one another.

    • I/O Parallelism

      • Multiple Disks per Database
      • One Database per Disk
      • One Relation per Disk
      • Split Relation across Multiple Disks

      Partition

      Split single logical table into disjoint physical segments that are stored/managed separately.

      • vertical partitioning (store a table’s attributes in a separate location)
      • horizontal partitioning (divide the tuples of a table up into disjoint segments based on some partitioning key)
        • hash partitioning
        • range partitioning
        • predicate partitioning

Query planning

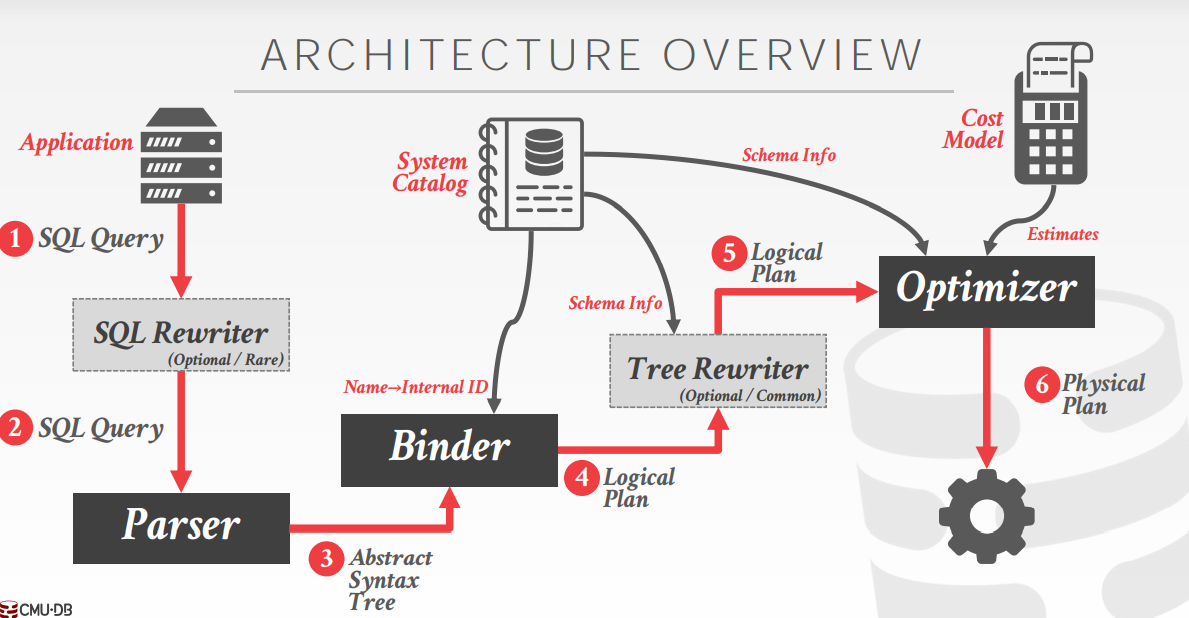

image-20210425235809978

  • Heuristics / Rules (Rewrite the query to remove stupid / inefficient things)

    Two relational algebra expressions are equivalent if they generate the same set of tuples. The DBMS can identify better query plans without a cost model. This is often called query rewriting.

    An optimizer implemented using if/then/else clauses or a pattern-matching rule engine, transforms a query’s expressions (e.g., WHERE clause predicates) into the optimal/minimal set of expressions.

    • Logical query optimization

      1. split conjunctive predicates

        Decompose predicates into their simplest forms to make it easier for the optimizer to move them around.

      2. predicate pushdown

        Move the predicate to the lowest point in the plan after Cartesian products.

      3. replace cartesian products with joins

        Replace all Cartesian Products with inner joins using the join predicates

      4. projection pushdown

        Eliminate redundant attributes before pipeline breakers to reduce materialization cost.

      For nested sub-queries

      • rewrite to de-correlate / flatten them
      • decomposed nested query and store result to temporary table

  • Cost-based Search (Use a model to estimate the cost of executing a plan)

    • cost model component

      • Physical costs (predict CPU cycles, I/O, … and it is heavily depends on hardware)
      • Logical costs (estimate operator result sizes and independency of the operator algorithm)
      • Algorithm costs (complexity of the operator algorithm implementation)

    • selectivity estimations

      statistic:

      For each relation R, the DBMS maintains the following information:

      • NRNR : Number of tuples in R.
      • V(A,R)V(A,R): Number of distinct values for attribute A.

      The selection cardinality SC(A,R) is the average number of records with a value for an attribute A given NR/V(A,R)NR/V(A,R)

      The selectivity (sel) of a predicate P is the fraction of tuples that qualify.

      Formula depends on type of predicate (Equality / Range / Negation / Conjunction / Disjunction) and relies on the following assumptions

      • Assumption #1: Uniform data

        The distribution of values (except for the heavy hitters) is the same.

      • Assumption #2: Independent predicates

        The predicates on attributes are independent.

      • Assumption #3: Inclusive principle

        The domain of join keys overlap such that each key in the inner relation will also exist in the outer table.

    • non-uniform approximation

      • equi-width histogram (all buckets have the same width)
      • equi-depth histogram (vary the width of buckets so that the total number of occurrences for each bucket is roughly the same)
      • sketches (probabilistic data structures that generate approximate statistics about a data set)
      • sampling

    • query optimization

      • Single relation query planning

        1. Pick the best access method.
        2. Predicate evaluation ordering.

      • Multiple relation query planning

        1. Enumerate relation orderings (need to restrict search space)
        2. Enumerate the plans for each operator
        3. Enumerate access method choices for each table

        Use dynamic programming to reduce the number of cost estimations.

      • Nested sub-queries

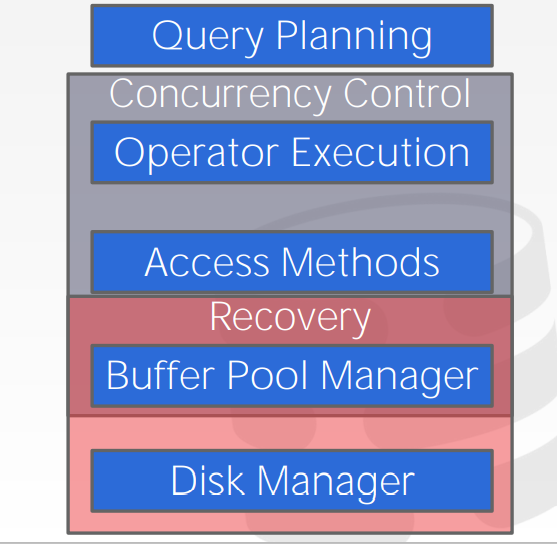

image-20210427234935009

Concurrency Control

Transaction

Correct criteria

Atomicity Consistency Isolation Durability

  • Atomicity

    • Logging
    • Shadow Paging

  • Consistency

    • database consistency (accurately models the real world and follows integrity constraints)

    • transaction consistency

      If the database is consistent before the transaction starts (running alone), it will also be consistent after. It is the application’s responsibility.

  • Isolation

    A concurrency control protocol is how the DBMS decides the proper interleaving of operations from multiple transactions.

    • pessimistic
    • optimistic

    Interleaved execution anomalies

    • Read-Write Conflict -> unrepeatable read
    • Write-Read Conflict -> dirty read
    • Write-Write Conflict -> overwrite uncommitted data

    Schedule correctness judgement

    If a schedule is equivalent to some serial execution, we judge it is correct.

    • Serial schedule

      A schedule that does not interleave the actions of different transactions.

    • Equivalent schedule

      For any database state, the effect of executing the first schedule is identical to the effect of executing the second schedule.

    • Serializable schedule

      A schedule that is equivalent to some serial execution of the transactions.

    Different levels of serializability

    • Conflict Serializability (most DBMSs try to support it)

      Verify using either the “swapping” method or dependency graphs.

    • View Serializability (no DBMS can do this)

      No efficient way to verify.

    Serial ⫋⫋ Conflict Serializable ⫋⫋ View Serializable ⫋⫋ All Schedules

  • Durability

    • logging
    • shadow paging

Pessimistic

  • Basic Lock Type:

    • S-LOCK
    • X-LOCK

  • Two-phase locking

    Phase #1. Growing

    Phase #2. Shrinking

    Problem: it is subject to cascading aborts.

  • Strong strict 2PL

    Release all locks at end of txn.

    Allows only conflict serializable schedules.

  • 2PL deadlocks

    • deadlock detection (waits-for graph)

      • deadlock handling:
        • victim selection
        • rollback length: completely or minimally

    • deadlock prevention

      Assign priorities based on timestamps: Older Timestamp = Higher Priority

      • wait-die

      If requesting txn has higher priority than holding txn, then requesting txn waits for holding txn.

      • wound-wait

      If requesting txn has higher priority than holding txn, then holding txn aborts and releases lock.

  • Lock granularities

    Trade-off between parallelism versus overhead.

    Fewer locks, larger granularity vs. more locks, smaller granularity

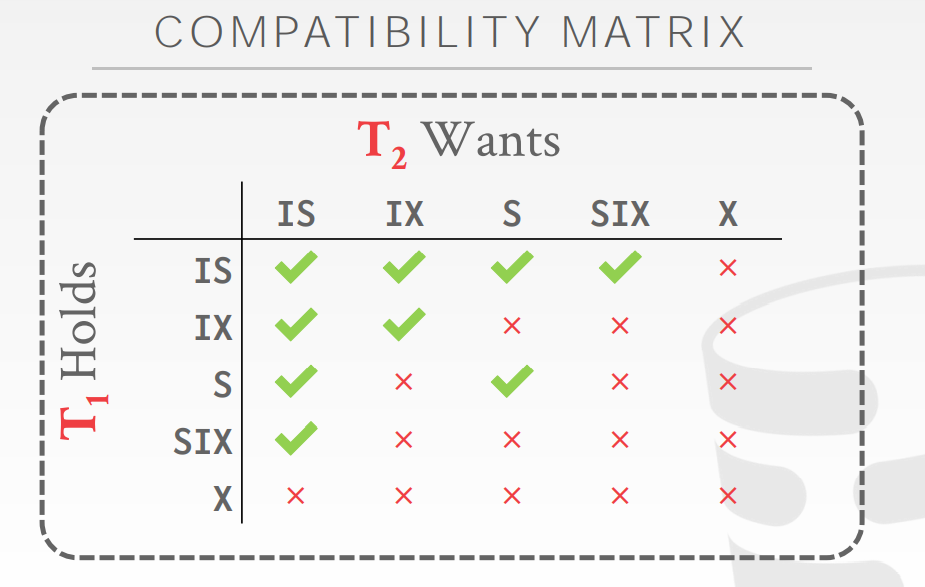

    • intention locks

      • Intention-Shared (IS)

      • Intention-Exclusive (IX)

      • Shared+Intention-Exclusive (SIX)

        image-20210430020350478

Optimistic

Timestamp Ordering (T/O)

  • timestamp allocation

    • system clock
    • logical counter
    • hybrid

  • Basic Timestamp Ordering (T/O) Protocol

    Thomas Write Rule (reduce abort) :

    If TS(Ti) < W-TS(X), ignore the write to allow the txn to continue executing without aborting.

  • Optimistic Concurrency Control

    1. Read Phase
    2. Validation Phase
      • Backward validation
      • Forward validation
    3. Write Phase

  • Phantom problem

    • Re-Execute Scans
    • Predicate Locking
    • Index Locking

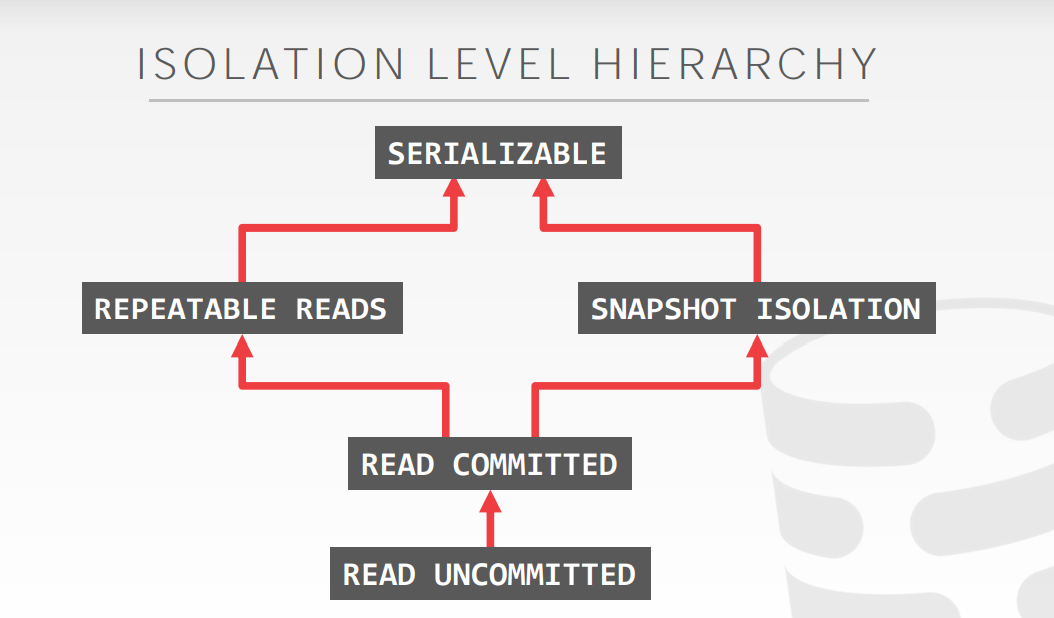

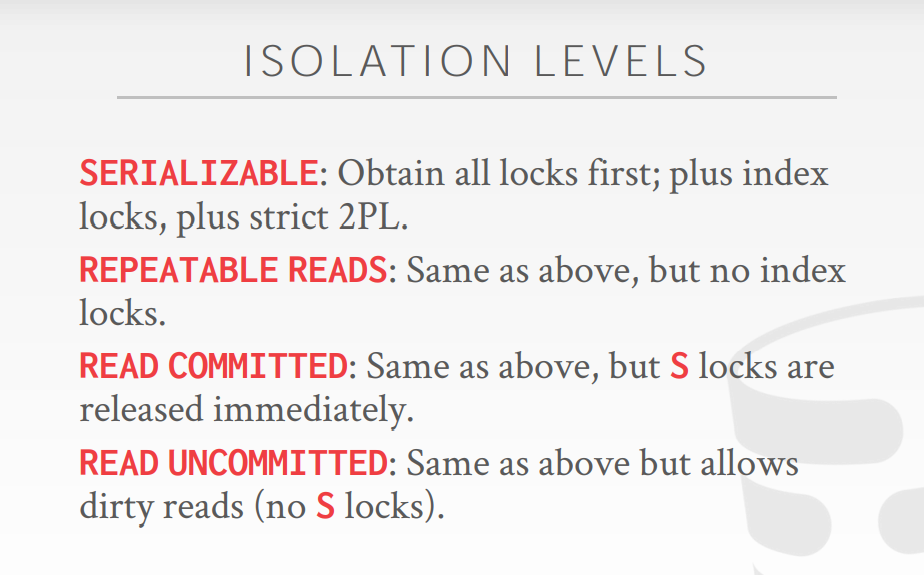

image-20210428031329246image-20210429003431694

MVCC

Snapshot isolation

Write skew anomaly

  • Concurrency control protocol (the default is Timestamp ordering)

  • Version storage

    • Append only storage

      chain ordering (oldest to newest / newest to oldest)

    • Time-travel storage

    • Delta storage

  • Garbage collection

    • Look for expired versions

      • Version tracking

        • Tuple level

          background vacuuming vs. cooperative cleaning

        • Transaction level

        • Epochs

    • Decide when it is safe to reclaim memory

      • Frequency
        • Periodically
        • Continuously
      • Granularity
        • Single version
        • Group version
        • Tables
      • Comparison unit (determine whether version(s) are reclaimable)
        • Timestamp
        • Interval

  • Index management

    • Logical pointers
    • Physical pointers

Modern MVCC Implementation

  • Hekaton (SQL Server)
  • TUM HyPer
  • SAP HANA
  • CMU Cicada

Recovery

Ensure database consistency, transaction atomicity, and durability despite failures

  1. Actions during normal txn processing to ensure that the DBMS can recover from a failure.

    • Failure classification

      • Transaction failures

        • logical errors

          Transaction cannot complete due to some internal error condition (e.g., integrity constraint violation).

        • internal state errors

          DBMS must terminate an active transaction due to an error condition (e.g., deadlock).

      • System failures

        • software failure

          Problem with the OS or DBMS implementation (e.g., uncaught divide-by-zero exception).

        • hardware failure

          The computer hosting the DBMS crashes (e.g., power plug gets pulled).

      • Storage media failures

        • non-repairable hardware failure

          A head crash or similar disk failure destroys all or part of non-volatile storage.

          Destruction is assumed to be detectable (e.g., disk controller use checksums to detect failures)

    • Undo & Redo

      Undo: The process of removing the effects of an incomplete or aborted txn.

      Redo: The process of re-instating the effects of a committed txn for durability.

      • Steal Policy

        Whether the DBMS allows an uncommitted txn to overwrite the most recent committed value of an object in non-volatile storage

      • Force Policy

        Whether the DBMS requires that all updates made by a txn are reflected on non-volatile storage before the txn can commit.

      no-steal + force -> shadow paging

      • disadvantages:

        copying the entire page table is expensive

        commit overhead is high

      steal + no-force -> write-ahead log

    • Logging schema

      • physical logging
      • logical logging
      • physiological logging

    • Checkpoints

  2. Actions after a failure to recover the database to a state that ensures atomicity, consistency, and durability.

    Mains ideas of ARIES

    1. WAL with steal / no-force
    2. fuzzy checkpoints (snapshot of dirty page ids)
    3. Redo everything since the earliest dirty page
    4. Undo txns that never commit
    5. Write CLRs when undoing, to survive failures during restarts

    1. Write-Ahead Logging

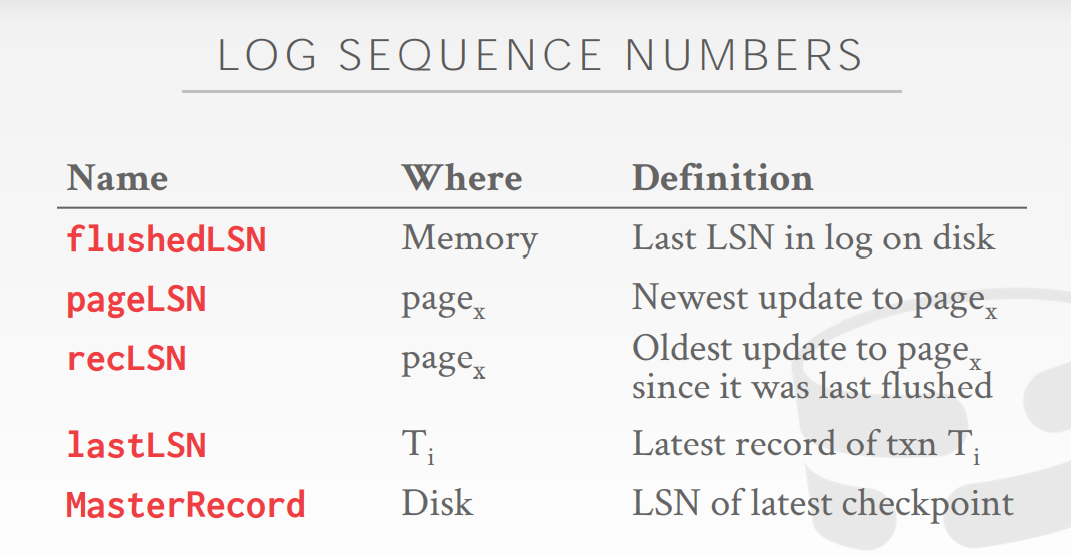

      • Log Sequence number

        image-20210429001556373

    2. Fuzzy Checkpointing

      • Non-fuzzy checkpoints

        The DBMS halts everything when it takes a checkpoint to ensure a consistent snapshot.

      • Slightly better checkpoints

        • Active transaction table (ATT)
        • Dirty Page Table (DPT)

      • Fuzzy checkpoints

        Allows active txns to continue the run while the system flushes dirty pages to disk

        Checkpoint boundaries

        • begin (indicates start of checkpoint)
        • end (contains ATT+DPT)

    3. Recovery phase

      Phase #1: Analysis

      Phase #2: Redo

      Phase #3: Undo

Others: Compression

  • granularity

    • block level
    • tuple level
    • attribute level
    • column level

  • columnar compression

    • null supression

      Consecutive zeros or blanks in the data are replaced with a description of how many there were and where they existed.

    • run-length encoding

      Compress runs of the same value in a single column into triplets:

      1. the value of the attribute
      2. the start position in the column segment
      3. the # of elements in the run

      Requires the columns to be sorted intelligently to maximize compression opportunities.

    • bitmap encoding

      Store a separate bitmap for each unique value for an attribute where an offset in the vector corresponds to a tuple.

    • delta encoding

      Recording the difference between values that follow each other in the same column.

    • incremental encoding

      Type of delta encoding that avoids duplicating common prefixes/suffixes between consecutive tuples. This works best with sorted data.

    • mostly encoding

      When values for an attribute are “mostly” less than the largest size, store them as smaller data type

    • dictionary encoding

      Replace frequent patterns with smaller codes.

      • dictionary construction
        • all at once
        • incremental
      • dictionary scope
        • block level
        • table level
        • multi-table
      • dictionary data structures
        • array
        • hash table
        • b+ tree

Reference

CMU 15-445/645 FALL 2020 DATABASE SYSTEMS

CMU 15-721 SPRING 2020 Advanced Database Systems
